防爆插頭 OPTIMA-EX[GD] Series

OPTIMA-EX[GD] Series
在線訂購
產品詳情

OPTIMA-EX[GD] Series

OPTIMA-EX[GD] is a range of industrial plugs from 16 to 125A for

applications in Zone 1/2 (Gas) and 21/22 (Dust).

The enclosure, made of dissipative thermoplastic reinforced with

glass fiber is resistant to impact even at low temperatures.

The efficiency of the contacts over time is guaranteed by the use of

nickel-plated brass pins, resistant to oxidation and aging.





 Rated current:                                16A-32A-63A-125A


Rated voltage:

>100÷690V

Frequency:

50÷60Hz

Installation temperature:

2P+E 500V

3P+E / 3P+N+E 690V

Protection degree:

IP66

Temperatura di installazione:

-50°C +60°C

Enclosure material:

Dissipative thermoplastic  reinforced with glass fiber

Colour:

Black RAL 9011

Impact resistance (IK degree):

7J

Construction characteristics/ type of closure:

Separate body and handle /

Screws with threaded inserts (4)

Terminals:

Screw 16A-32A

Mantle 63A-125A

Nickel-plated pins:

16A-32A-63A-125A

Mobile versions cable entry device:

IP66 cable gland/

external cable clamp


常用型號：

Cod. 219.1633、Cod. 219.1636、Cod. 219.1637、Cod. 219.3233、Cod. 219.3236、Cod. 219.3237、Cod. 219.6336、Cod. 219.6337、Cod. 219.12536、Cod. 219.12537

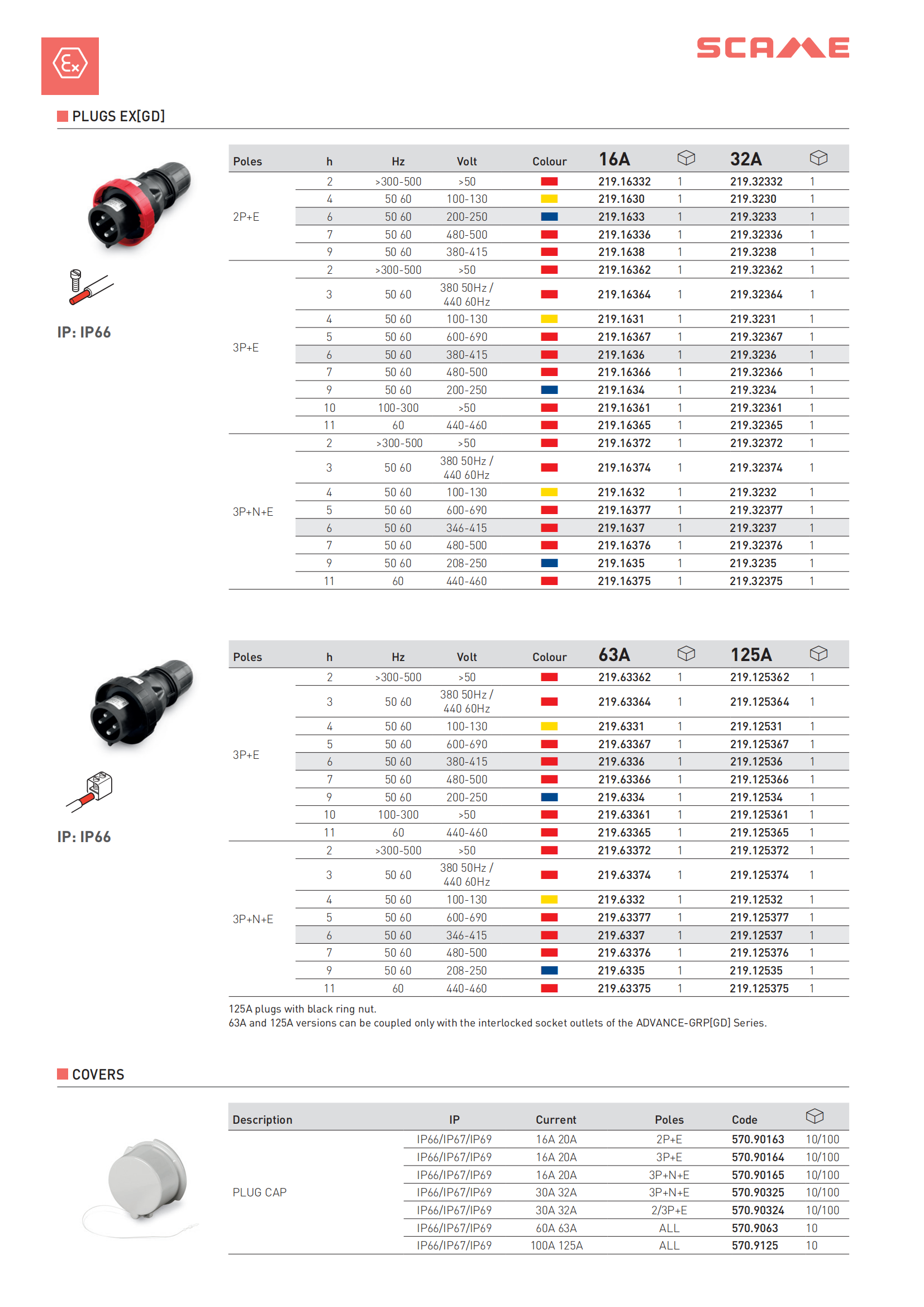

OPTIMA-EX[GD] Series_5_00.png
